BP 3-Jaw Chuck and Back Plate
Accessory

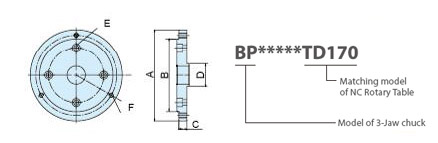

BP 3-Jaw Chuck and Back Plate
| 3-Jaw Chuck and Back Plate NO. | Powerful 3-Jaw Chuck | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|
| BP5050@TD170 |
S K -5 |
Ø130 | Ø100 | 20 | Ø50 | 4-M10 bore,Ø100 | 3-M8,Ø 115 |
| BP6050@TD170 | S K -6 | Ø170 | Ø130 | 20 | Ø50 | 4-M10 bore,Ø105 | 3-M10,Ø 147 |
| BP7050@TD200 | S K -7 | Ø200 | Ø155 | 20 | Ø50 | 4-M10 bore,Ø120 | 3-M10,Ø 172 |
| BP8080@TD255 | S K -8 | Ø255 | Ø160 | 22 | Ø80 | 4-M10 bore,Ø220 | 3-M10,Ø 176 |
| BP9080@TD255 | S K -9 | Ø255 | Ø190 | 21 | Ø80 | 4-M10 bore,Ø160 | 3-M12,Ø 210 |
| BP0040@TD320 | S K -10 | Ø270 | Ø230 | 25 | Ø40 | 4-M12 bore,Ø180 | 3-M12,Ø 250 |
| BPB040@TD400 | S K -12 | Ø320 | Ø260 | 25 | Ø40 | 8-M12 bore,Ø285 | 3-M12,Ø 285 |
