CH3-470C Indexing Table
CH3-470C Indexing Table
CH3-470C Indexing Table
CH3-470C Indexing Table
CH3-470C
Horizontal Series
  • Adopted high precision 3pcs HIRTH COUPLING. It can ensure high position accuracy and unnecessary lift faceplate.
  • Rack driving can make high mechanical e-ciency of power transmission.
  • Hydraulic driving can cut down the cost.
  • Hydraulic clamping system can assure the heavy and steady cutting without any deviation from the centre and can ensure accurate positioning.
  • It can be attached with PLC controller or HIC-2010 as an additional Axis.
  • It can be matched with Rotary Special Machine.
  • It can be matched with boring and milling machine.
Use Method Horizontal use only
Clamp Method Hydraulic 35Kg/cm2
Faceplate Dia Ø470mm
Thru-Hole Dia Ø40mm
Centre Hole Dia Ø90X12Deep
T-Slot Width None
Division Standard division: (Single-selection)
4D, 6D, 8D, 12D,24D
Special division: (Single-selection)
2D, 3D, 5D, 9D, 10D, 16D, and 20D, etc.
Indexing Accuracy (Arc. Sec.) ±5 (Arc. Sec.)
Repeatability (Arc. Sec.) ±1 (Arc. Sec.)
Max. Load 700kg
Net Weight 275kg

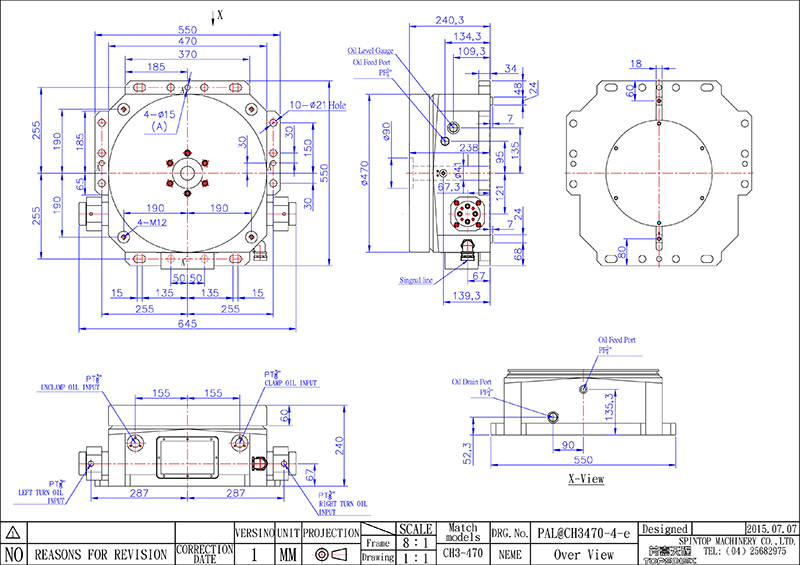

Faceplate can be drilled dimension：
unit：mm
MODEL A B
CH3-470 Ø 350 33
