CH3-800
Index Table
CH3-800
Horizontal Series
- Adopted high precision 3pcs HIRTH COUPLING. It can ensure high position accuracy and unnecessary lift faceplate.
- Rack driving can make high mechanical e-ciency of power transmission.
- Hydraulic driving can cut down the cost.
- Hydraulic clamping system can assure the heavy and steady cutting without any deviation from the centre and can ensure accurate positioning.
- It can be attached with PLC controller or HIC-2010 as an additional Axis.
- It can be matched with Rotary Special Machine.
- It can be matched with boring and milling machine.
| Use Method | Horizontal use only |
|---|---|
| Clamp Method | Hydraulic 35Kg/cm2 |
| Faceplate Dia | Ø800mm |
| Thru-Hole Dia | Ø45mm |
| Centre Hole Dia | Ø100X20Deep |
| T-Slot Width | None |
| Division | Standard division: (Single-selection) 4D, 6D, 8D, 12D,24D |
| Special division: (Single-selection) 2D, 3D, 5D, 9D, 10D, 16D, and 20D, etc. |
|
| Indexing Accuracy (Arc. Sec.) | ±5 (Arc. Sec.) |
| Repeatability (Arc. Sec.) | ±1 (Arc. Sec.) |
| Max. Load | 2100kg |
| Net Weight | 1000kg |

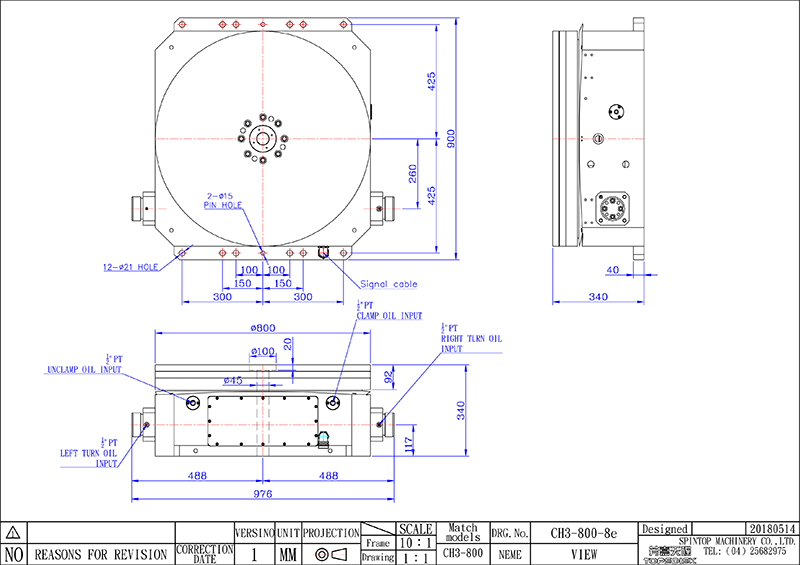

Faceplate can be drilled dimension：
unit：mm
| MODEL | A | B |
|---|---|---|
| CH3-800 | Ø 680 | 45 |
