CV3-320HD
Index Table

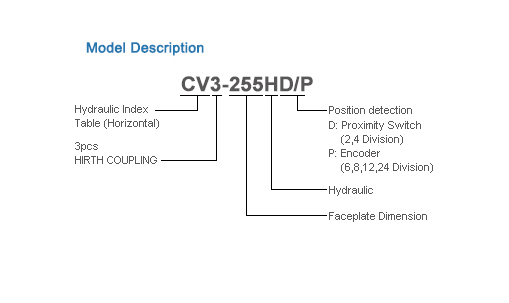

CV3-320HD
Vertical Series
- Adopted high precision 3pcs HIRTH COUPLING. It can ensure high position accuracy and unnecessary lift faceplate.
- Rack driving can provide high mechanical e-ciency of power transmission.
- Hydraulic driving can cut down the cost.
- Hydraulic clamping system can assure the heavy and steady cutting without any deviation from the center and can ensure accurate positioning.
- It can be attached with HIC2010 controller as an additional Axis.

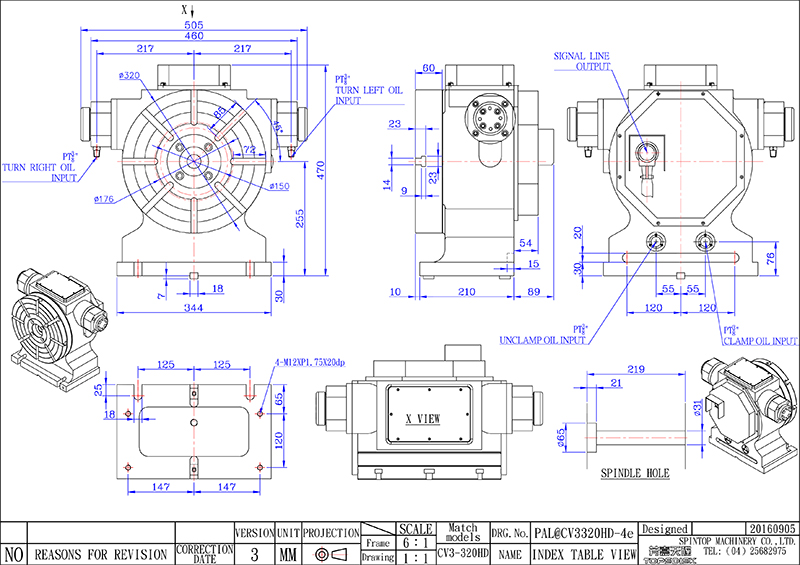

| Use Method | Vertical use only | |
|---|---|---|
| Clamp Method | Hydraulic 35kg/cm2 | |
| Faceplate Dia | Ø320mm | |
| Thru-Hole Dia | None | |
| Centre Hole Dia | Ø65X21Deep | |
| Centre Height | 255mm | |
| Position Key | 18h7mm | |
| T-Slot Width | 14H7mm | |
| Division | Standard division: (Single-selection) 4D, 6D, 8D, 12D,24D |
|
| Special division: (Single-selection) 2D, 3D, 5D, 9D, 10D, 16D, and 20D, etc. |
||
| Indexing Accuracy (Arc. Sec.) | ±5 (Arc. Sec.) | |
| Repeatability (Arc. Sec.) | ±1 (Arc. Sec.) | |
| Max. Load | • Vertical (With Tailstock Horizontal) | 175(350)kg |
| • Horizontal | No | |
| Net Weight | 140kg | |
