GDU-230
Rotary Table for CNC Grinding Machine(C Axis)
GDU-230
Table type, spindle down
- Direct drive motor, no backlash.
- Suitable for simultaneous machining, applied to Rotary table for grinding head (C axis).
- Built in cooling circuit.
- Min.division degree: 0.001 degree.
- Install various encoders according to accuracy requirements.
| Popular Model | ◎ |
|---|---|

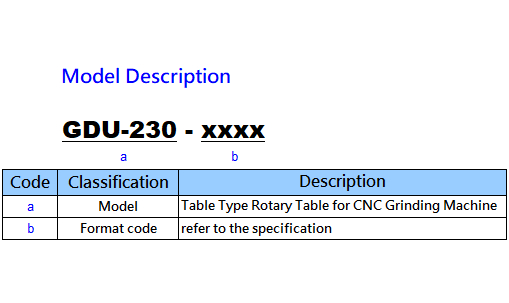

| Specification | GDU-230-HE12 |
| Use Method | Table type, spindle down |
| Cooling | built in cooling circuit |
| Clamp method | No Brake |
| Spindle through hole diameter | Ø40mm |
| Spindle center hole diameter | Ø45x20L mm |
| Maximum Speed (1 sec.) | 100rpm |
| Continuous Speed | 50rpm |
| Maximum Current(1 sec.) | Cooling 18A |
| Cont.Current | Cooling 9A |
| Maximum torque (1 sec.) | Cooling 228Nm |
| Cont.torque | Cooling 114Nm |
| Minimum Increment | 0.001° |
| Signal format | EnDat 2.2/22 |
| Resolution | 25bit |
| Positioning accuracy | ±25 (Arc.Sec.) |
| Repeatability | within 10 Arc.Sec. |
| Net weight | 56kg |
- 1. The cooler is provided by customer.

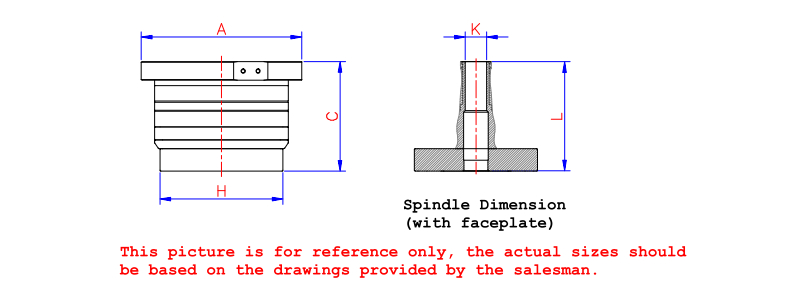

unit: mm
| GDU-230 | total width(A) | total height(C) | Spindle through hole(K) | Spindle or plate outer diameter(H) | Spindle length(L) |
|---|---|---|---|---|---|
| with plate | 300 | 205 | Ø40 | Ø230 | 204.5 |
