Jig Bracket

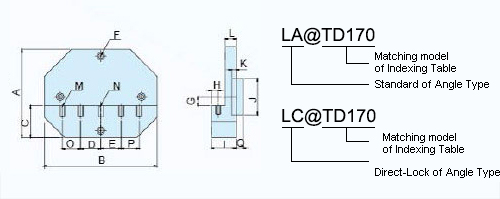

Angle Type L Jig Bracket
  • LA / LC
Standard of Angle Type
Specication/Model A B C D E F G H I
LA@TDE125 115 140 43 45 45 M10 15 15 55
LA@TD170 135 170 50 45 45 M10 15 15 55
LA@TD255 195 250 70 85 85 M10 20 15 55
LA@TD320 185 300 70 35 35 M12 20 20 65
LA@TD400 276 380 48 50 50 M12 52 15 75
LA@CV3320 185 300 70 35 35 M12 20 20 65
Specication/Model J K L M N O P Q Suitable Models
LA@TDE125 Ø20 10 25 2xM10 Ø10 - - 15 TDE-125
LA@TD170 Ø50 10 25 2xM10 Ø10 - - 15 TD-170
TE-170
TD-200
FT-135
FT-160A
LA@TD255 Ø80 10 25 2xM12 Ø10 - - 25 TD-255
TDE-255
FT-160
LA@TD320 Ø40 10 25 4xM12 Ø12 65 65 25 TD-320
FT-255A
LA@TD400 Ø40 - 40 4xM12 - 100 100 25 TD-400
LA@CV3320 Ø65 10 25 4xM12 Ø12 65 65 15 CV3-320
Direct-Lock of Angle Type
Specication/Model A B C D E F G H I
LC@TE125A 110 125 40 45 45 M8 15 15 55
LC@FT110 110 125 40 45 45 M10 15 15 55
LC@DDR260iB 135 170 50 17 17 M8 15 15 55
LC@TD170 135 170 50 45 45 M10 15 15 55
Specication/Model J K L M N O P Q Suitable Models
LC@TE125A Ø60 6 25 2 XM10 Ø10 - - - TE-125
LC@FT110 Ø100 5 25 2 XM10 Ø10 - - - FT-110
LC@DDR260iB Ø90 4 25 2 XM10 Ø10 28 28 - DDR-260iB
LC@TD170 Ø100 5 25 2 XM10 Ø10 - - - TD-170
TE-170
TD-200
FT-135
FT-160A
