Jig Bracket
Accessory

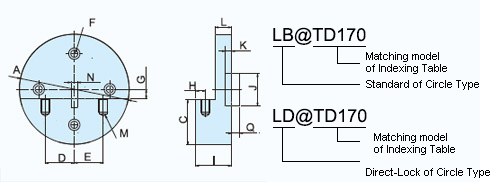

Circle Type L Jig Bracket
- LB / LD
| Standard of Circle Type | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Specication/Model | A | B | C | D | E | F | G | H | I |
| LB@TD170 | Ø170 | - | 70 | 45 | 45 | M10 | 15 | 15 | 55 |
| Specication/Model | J | K | L | M | N | O | P | Q | Suitable Models |
| LB@TD170 | Ø50 | 10 | 25 | 2 XM10 | Ø10 | - | - | 15 | TD-170 TE-170 TD-200 DDR-260iB |
| Direct-Lock of Angle Type | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Specication/Model | A | B | C | D | E | F | G | H | I |
| LD@TD170 | Ø170 | - | 70 | 45 | 45 | M10 | 15 | 15 | 55 |
| LD@DDR260iB | Ø170 | - | 70 | 45 | 45 | M10 | 15 | 15 | 55 |
| Specication/Model | J | K | L | M | N | O | P | Q | Suitable Models |
| LD@TD170 | Ø100 | 6 | 26 | 2 XM10 | Ø10 | - | - | - | TD-170 TE-170 TD-200 |
| LD@DDR260iB | Ø90 | 4 | 25 | 2 XM10 | Ø10 | - | - | - | DDR -2 60iB |
