Raiser A type (for MT)
Accessory

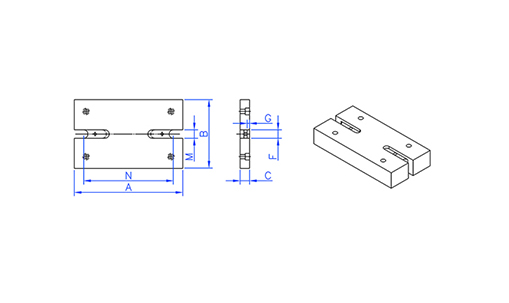

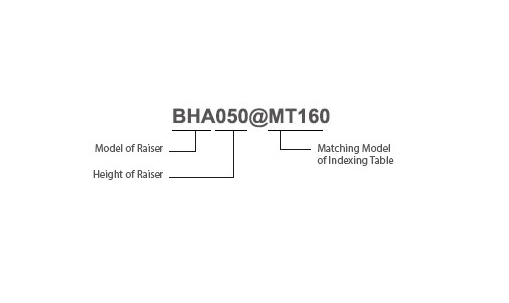

Specication/Model | A | B | C | F | G | M | N&N' |
---|---|---|---|---|---|---|---|
BHA025@MT110 | 195 | 100 | 25 | 14H7 | 5 | 2X14 | 159 |
BHA050@MT110 | 195 | 100 | 50 | 14H7 | 5 | 2X14 | 159 |
BHA025@MT135 | 195 | 100 | 25 | 14H7 | 5 | 2X14 | 159 |
BHA050@MT135 | 195 | 100 | 50 | 14H7 | 5 | 2X14 | 159 |
BHA025@MT160 | 230 | 130 | 25 | 18H7 | 5 | 2X18 | 190 |
BHA050@MT160 | 230 | 130 | 50 | 18H7 | 5 | 2X18 | 190 |
BHA025@MT210 | 290 | 146 | 25 | 18H7 | 5 | 2X18 | 250 |
BHA050@MT210 | 290 | 146 | 50 | 18H7 | 5 | 2X18 | 250 |
BHA025@MT255 | 345 | 200 | 25 | 18H7 | 5 | 2X18 | 265 |
BHA050@MT255 | 345 | 200 | 50 | 18H7 | 5 | 2X18 | 265 |
BHA025@MT280 | 345 | 200 | 25 | 18H7 | 5 | 2X18 | 265 |
BHA050@MT280 | 345 | 200 | 50 | 18H7 | 5 | 2X18 | 265 |
Unit: mm
