Raiser C type(for TD & FT)
Accessory
Raiser C type(for TD & FT)

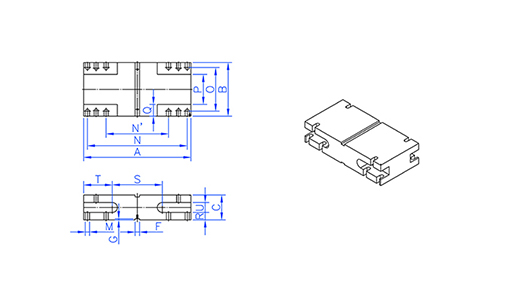

| Specication/Model | A | B | C | F | G | M | N&N' | O | P | Q | R | S | T | U |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

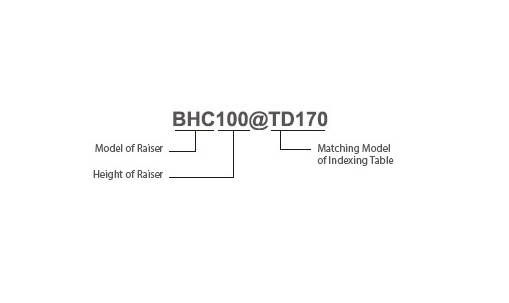

| BHC100@TD170 | 230 | 148 | 100 | 14H7 | 5 | 4X14 | 200 | 108 | 68 | 40 | 30 | 100 | 65 | 40 |
| BHC100@TD200 | 230 | 148 | 100 | 18H7 | 5 | 4X18 | 200 | 108 | 68 | 40 | 30 | 100 | 65 | 40 |
| BHC100@TD255 | 288 | 196 | 100 | 18H7 | 5 | 8X18 | 250&200 | 156 | - | - | 30 | 128 | 34 | 40 |
| BHC100@TDE255 | 300 | 144 | 100 | 18H7 | 5 | 8X18 | 250&200 | 104 | 64 | 40 | 25 | 70 | 115 | 50 |
| BHC100@TD320 | 430 | 215 | 100 | 18H7 | 5 | 8X18 | 400&250 | 176 | 120 | 47.5 | 30 | 200 | 115 | 40 |
| BHC100@FT135 | 288 | 95 | 100 | 14H7 | 5 | 8X14 | 250&200 | 55 | 30 | 32.5 | 30 | 160 | 64 | 40 |
| BHC100@FT160A | 288 | 95 | 100 | 18H7 | 5 | 8X18 | 250&200 | 55 | 30 | 32.5 | 30 | 160 | 64 | 40 |
| BHC100@FT160 | 288 | 124 | 100 | 18H7 | 5 | 8X18 | 250&200 | 84 | 40 | 42 | 30 | 160 | 64 | 40 |
| BHC100@FT210 | 400 | 153 | 100 | 18H7 | 5 | 8X18 | 250&200 | 113 | 60 | 46.5 | 30 | 140 | 80 | 40 |
Unit: mm
