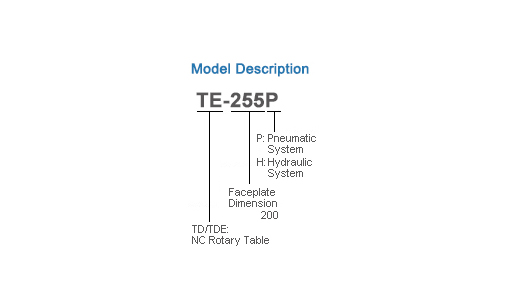

TE-200H
NC Rotary Table (0.001°)
TE-200H
Practical Type Series
- The feature of wear resistant alloy Dual-Lead Worm Gear.
- Easy adjusted on the backlash.
- The faceplate can separate with the table to save the space.
- It can be connected with CNC machine as a 4th Axis or matched with Single Axis Controller as an additional Axis.
- Minimum increment unit : 0.001°.
| Use Method | Vertical Use | |
|---|---|---|
| Clamp Method | Hydraulic 25kg/cm2 | |
| Faceplate Dimension | Ø200mm | |
| Spindle Through Hole Diameter | Ø40mm | |
| Faceplate Centre Hole Diameter | Ø50H7mm | |
| Centre Height | 160mm | |
| Faceplate T-Slot Width | 12H7mm | |
| Position Key | 18h7mm | |
| Servo Motor | • FANUC | α4i / β8i |
| •MELDAS | HF54T/HF104T(S) | |
| Total Speed Reduction Ratio | 1/90 | |
| Min. Increment Unit | 0.001° | |
| Indexing Accuracy | 30 (Arc. Sec.) | |
| Repeatability | 4 (Arc. Sec.) | |
| Clamp Force | 75kgf-m | |
| Max. Torque Capacity of Worm Gear | 27kgf-m | |
| Max. Workpiece of Capacity | • Workpiece Vertical (With Tailstock ) |
75(150)kg |
| • Horizontal | - | |
| Net Weight (Without motor) | 70kg | |
Unit: mm
| The outline of dimension | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TE-200H | Servomotor cover type | A | B1 | B2 | C1 | C2 | D | E1 | E2 | F | G1 | G2 |
| Vertical / Horizontal Use | 518 | 328 | 110 | 333 | 301 | 160 | 179 | 150 | Ø200 | M18 | 7 | |
Unit: mm
| Spindle Dimension | ||||
|---|---|---|---|---|
| Faceplate | A | B | C | D |
| Yes | Ø50 X 24L | 178 | Ø40 X 20L | 4-M6X 15L,Ø50 |
